Introduction
The RINGMAIN software allows pneumatic ring main systems to be drawn to scale.
ISO 1219 symbols can be added to the ring main and drops added to the ring main.
This version also supports the ATLAS COPCO AIRNET compressed air components.
Parts lists for ATLAS COPCO AIRNET parts can be created for your ring main design.
The software also allows the ring main defined to be printed to scale using any
Windows compatible printer conected to your PC. An example printer output can be
viewed by clicking here.
Example screen shots can be found at the bottom of this page.
To view the ring main data sheet click here.
Platforms
The RINGMAIN software is supported on the following Windows platforms :
Windows 95/98/ME/NT/2000
Windows XP 32 & 64 bit
Windows VISTA 32 & 64 bit
Windows 7 32 & 64 bit
Windows 10 32 & 64 bit
Purchase RINGMAIN FOR ATLAS COPCO AIRNET
The RINGMAIN software is licensed on a PC by PC basis.
To purchase the RINGMAIN software for ATLAS COPCO AIRNET either:
EMail : sales@swws.co.uk
Telephone : +44 (0)7986 155478
Download RINGMAIN Software
>
To download and try for 90 days free click the button below. This free 90 day demonstration software is almost fully functional
except for printing and some symbol support. Designs can be created with this software but not printed or exchanged
using other file formats.
Screen Shots

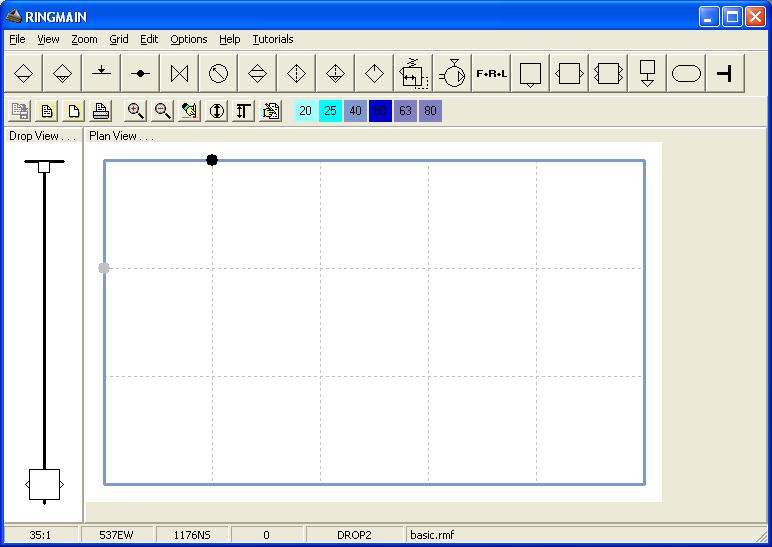

Main Screen

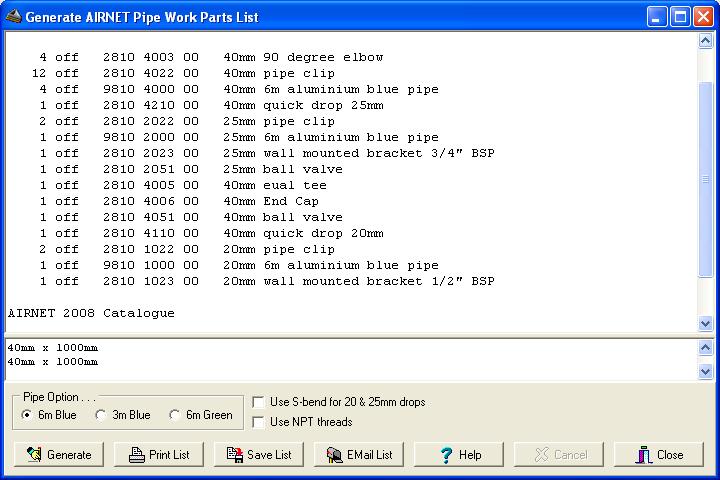

AIRNET Parts Generation Screen
Acknowledgements
ISO 1219 symbols are reproduced from BS 2917-1:1993, ISO 1219-1:1991.
British Standards can be obtained in PDF format from the BSI online shop:
http://www.bsi-global.com/en/Shop/
or by contacting BSI Customer Services for hardcopies:
Tel: +44 (0)20 8996 9001
Email: cservices@bsi-global.com
