The RINGMAIN software allows easy pipe work layout design of compressed air pipework and compressor houses. The software allows pneumatic ring main systems or compressor houses to be drawn to scale. ISO 1219 symbols can be added to the ring main and drops added to the ring main.

This version also supports the AIGNEP INFINITY compressed air components catalogue for 2014. Parts lists for the AIGNEP INIFINITY 2014 catalogue can be created for your ring main design.

The software also allows the ring main defined to be printed to scale using any Windows compatible printer conected to your PC. An example printer output can be viewed by clicking here.

This software is free to download and use. Any support however must be purchased on a year by year basis. To obtain a support contract please contact for a quote.

Example screen shots can be found at the bottom of this page.

To view the ring main data sheet click here.


The RINGMAIN software is supported on the following Windows platforms :

Windows 95/98/ME/NT/2000
Windows XP 32 & 64 bit
Windows VISTA 32 & 64 bit
Windows 7 32 & 64 bit
Windows 10 32 & 64 bit

Download RINGMAIN Software

To download and try for 90 days free click the button below. This free 90 day demonstration software is almost fully functional except for printing and some symbol support. Designs can be created with this software but not printed or exchanged using other file formats.

Download standard RINGMAIN Software

Screen Shots

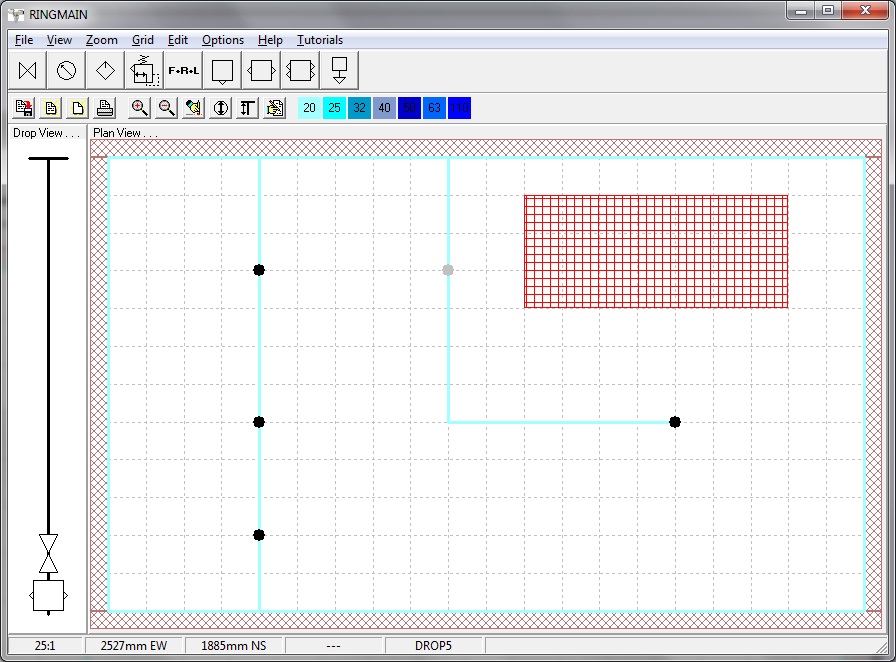

Main Screen

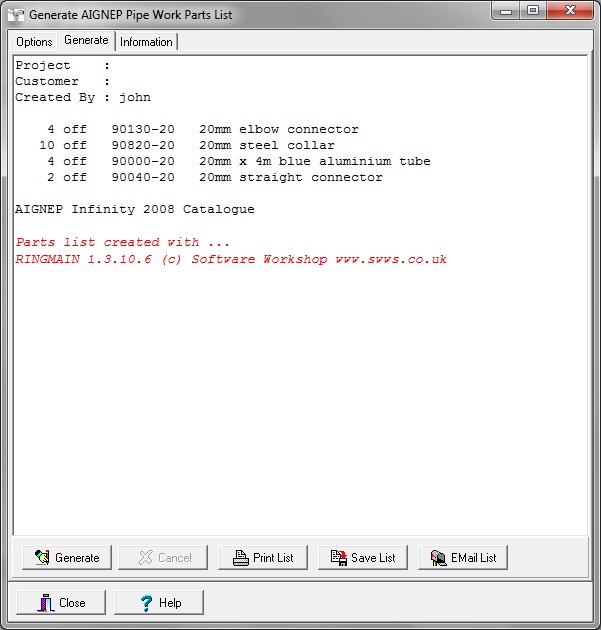

AIGNEP INFINITY Parts Generation Screen

ISO 1219 symbols are reproduced from BS 2917-1:1993, ISO 1219-1:1991.
