ADA Ravenscar SFP for: STM32F411, TM4C1294

This page is dedicated to those who want to use ADA to program ARM processor boards. The boards listed below use the GNAT GPL 2015 as the basis for the ADA RTS. Provided with each board support directory is an API to control the peripherals on the MCU. See the MCU API page for more details, or for the Tiva boards you can use tiva_rom.ads which is described below and provides access to the Tiva ROM functions.

Board Files	Description	Notes	Release Date

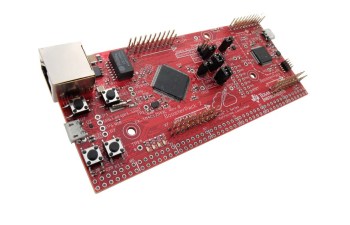

TM4C1294	Texas Instruments Tiva C Series Connected Board	CPU clock 120MHz external 25MHz crystal UART0 115200 baud via USB for Text IO	20-July-2015

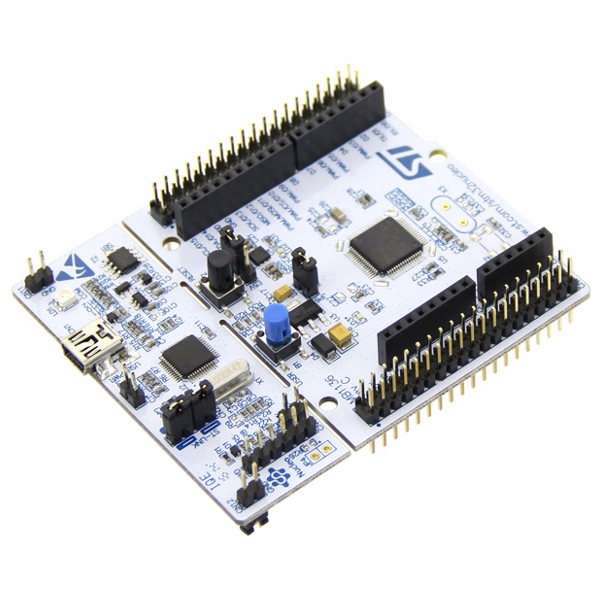

STM32F411	STM32F411 Nucleo Board	CPU clock 96MHz internal 16MHz oscillator USART2 115200 baud via USB for Text IO	2-August-2015

Before downloading any board support files, you must install the GNAT GPL 2015 from: LIBRE ADA CORE.

After installing GNAT GPL 2015, the board support zip file must be unzipped into the following directory: C:\GNAT\2015\arm-eabi\lib\gnat

	To rebuild the ADA run time for Ti Tiva TM4C1294 use the following command: gprbuild --target=arm-eabi -PC:\GNAT\2015\arm-eabi\lib\gnat\ravenscar-sfp-tm4c1294\ravenscar_build.gpr To build an example program for flash use the following command: gprbuild --RTS=ravenscar-sfp-tm4c1294 --target=arm-eabi -Pexample.gpr -XLOADER=ROM Texas Instruments TM4C1294 website
	To rebuild the ADA run time for STM32F411 Nucleo board use the following command: gprbuild --target=arm-eabi -PC:\GNAT\2015\arm-eabi\lib\gnat\ravenscar-sfp-stm32f411\ravenscar_build.gpr To build an example program for flash use the following command: gprbuild --RTS=ravenscar-sfp-stm32f411 --target=arm-eabi -Pexample.gpr -XLOADER=ROM STM32F411RE website

Example GNAT project file (example.gpr) for example.adb

project Example is for Main use ("example.adb"); package Compiler is for Default_Switches ("Ada") use ("-O2", "-mlittle-endian", "-mhard-float", "-mtune=cortex-m4", "-mfpu=fpv4-sp-d16", "-mthumb"); end Compiler; package Builder is for Executable ("example.adb") use "example.out"; end Builder; end Example;

Example program file example.adb

with MCU.GPIO; with Ada.Real_Time; use Ada.Real_Time; procedure Example is NT : Ada.Real_Time.Time; begin loop NT := Ada.Real_Time.Clock + Ada.Real_Time.Milliseconds(1000); MCU.GPIO.Blink_Board_LED; delay until NT; end loop; end Example;

How to build example.adb and create a binary that can be flashed

gprbuild --RTS=ravenscar-sfp-stm32f411 --target=arm-eabi -Pexample.gpr -XLOADER=ROM

or for Tiva ...

gprbuild --RTS=ravenscar-sfp-tm4c1294 --target=arm-eabi -Pexample.gpr -XLOADER=ROM

now create binary file to flash ...

arm-eabi-objcopy example.out --output-target=binary example.bin

Tiva C Series TM4C129x ROM ADA Interface package

To obtain an ADA interface package for the Tiva ROM functions download tiva_rom.ads from the link. The following example shows how to use the tiva_rom package:

with Ada.Real_Time; use Ada.Real_Time; with TIVA_ROM; procedure Example is NT : Ada.Real_Time.Time; begin loop -- Flash the LED ... TIVA_ROM.GPIO.PinWrite(TIVA_ROM.GPIO_PORT_N_Base,1,1); NT := Ada.Real_Time.Clock + Ada.Real_Time.Milliseconds(100); delay until NT; TIVA_ROM.GPIO.PinWrite(TIVA_ROM.GPIO_PORT_N_Base,1,0); NT := Ada.Real_Time.Clock + Ada.Real_Time.Milliseconds(100); delay until NT; end loop; end Example;
